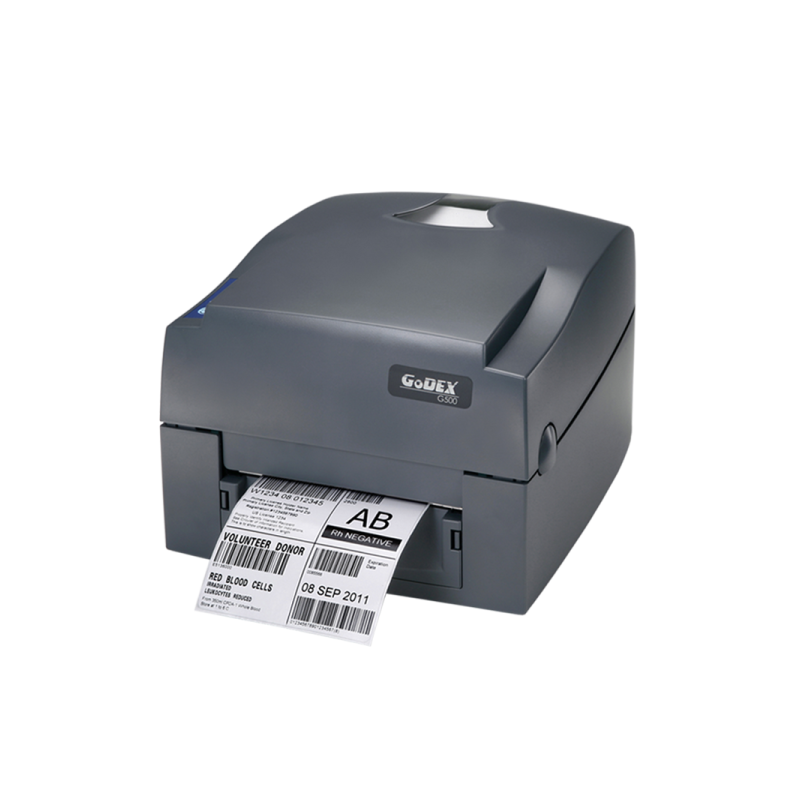

The adhesive label printer is designed for light to medium duty adhesive label printing jobs. The label printer is equipped with COM and USB connectors and uses low-cost adhesive labels and carbon ribbons. An optional accessory, the label holder, can be used with the adhesive label printer. The self-adhesive label printer is sold with the free Golabel self-adhesive label layout software.
You might also like
| Printing method: | Thermal transfer/Direct thermal |
| Resolution: | 203 dpi ( 8 dots/mm) |
| Print speed: | 5IPS (127 mm/s) |
| Print width: | 4.25" (108 mm) |
| Print length: | Min. 0.16 (4 mm); Max. 68 (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 8MB Flash (4MB for user storage) / 16MB SDRAM |
| Media |
Width: 1 (25.4 mm) Min. - 4.64 (118 mm) Max. Thickness: 0.003 (0.06 mm) Min. - 0.01 (0.25 mm) Max. Sticker Roll Diameter: Max. 5 (127 mm) Core Diameter: 1, 1.5, 3" (25.4 mm, 38.1 mm, 76.2 mm)
|
| Carbon tape: |
Type: Wax, wax/resin, resin Length: 981' (300 m) Width: 1.18 Min - 4.33 (30 mm - 110 mm) Max Roll Diameter:.: 2.67 (68 mm) Core Diameter: 1 (25.4 mm)
|
| Languages supported by the printer | EZPL, GEPL, GZPL auto switch |
| Software: |
Label design software: GoLabel (EZPL only), QLabel-IV (EZPL only) Driver and DLL: Windows 2000, XP, Vista, 7,8,Windows Server 2003 & 2008
|
| Available fonts: |
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
|
| Downloadable fonts: |
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
|
| Barcodes: |
1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar 2-D Bar Codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
|
| Encoding: |
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16)
|
| Graphics: | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces: | USB + Parallel Port USB + Serial Port |
| Control Panel: | Two bi-color status-LEDs: Ready, Status Control key: FEED |
| Power supply: | Auto Switching 100-240VAC, 50-60Hz |
| Environment: | 41°F to 104°F (5°C to 40°C) Storage Temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity: | Operating: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Certified: | CE(EMC), FCC Class A, CB, cUL, CCC |
| Dimensions: | Length: 11.2 (285 mm) Height: 6.8 (171 mm) Width: 8.9 (226 mm) |
| Weight: | 6 lbs (2.72Kg), without accessories |
| Available modifications: | Sticker cutter Peeler External Sticker Roll Holder 10 (250 mm) External Sticker Wrapper |
