The adhesive label printer is designed for light to medium duty adhesive label printing jobs. The label printer is equipped with Ethernet, COM and USB connections and uses low-cost adhesive labels and carbon ribbons. An optional accessory, a label holder, can be used with the adhesive label printer. The self-adhesive label printer is sold with the free Golabel self-adhesive label layout software.
You might also like
The adhesive label printer is designed for light to medium duty adhesive label printing jobs. The label printer is equipped with Ethernet, COM and USB connections and uses low-cost adhesive labels and carbon ribbons. An optional accessory, a label holder, can be used with the adhesive label printer. The self-adhesive label printer is sold with the free Golabel self-adhesive label layout software.
| Printing method: | Thermal Transfer/Direct Thermal |
| Resolution: | 203 dpi ( 8 dots/mm) |
| Print speed: | 5IPS (127 mm/s) |
| Print width: | 4.25" (108 mm) |
| Print length: | Min. 0.16 (4 mm); Max. 68 (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 8MB Flash (4MB for user storage) / 16MB SDRAM |
| Media |
Width: 1 (25.4 mm) Min. - 4.64 (118 mm) Max. Thickness: 0.003 (0.06 mm) Min. - 0.01 (0.25 mm) Max. Sticker Roll Diameter: Max. 5 (127 mm) Core Diameter: 1, 1.5, 3" (25.4 mm, 38.1 mm, 76.2 mm)
|
| Carbon tape: |

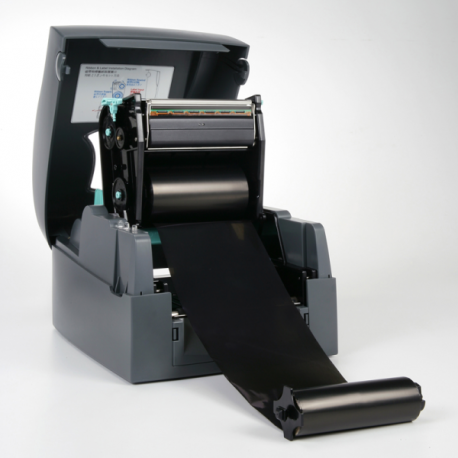

Type: Wax, wax/resin, resin Length: 981' (300 m) Width: 1.18 Min - 4.33 (30 mm - 110 mm) Max Roll Diameter:.: 2.67 (68 mm) Core Diameter: 1 (25.4 mm)
|
| Languages supported by the printer | EZPL, GEPL, GZPL auto switch |
| Software: |
Label design software: GoLabel (EZPL only), QLabel-IV (EZPL only) Driver and DLL: Windows 2000, XP, Vista, 7,8,Windows Server 2003 & 2008
|
| Available fonts: |
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
|
| Downloadable fonts: |
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
|
| Barcodes: |
1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar 2-D Bar Codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
|
| Encoding: |
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16)
|
| Graphics: | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |

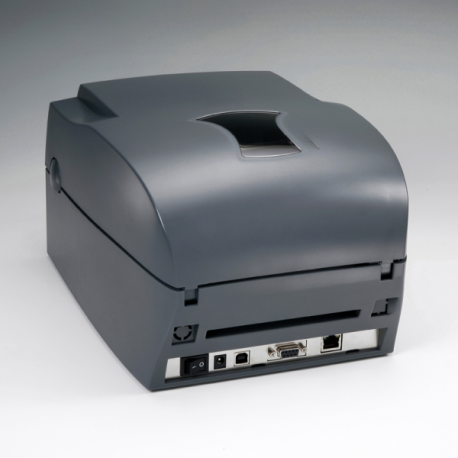

| Interfaces: | USB + Parallel Port USB + Serial Port + Ethernet |
| Control Panel: | Two bi-color status-LEDs: Ready, Status Control key: FEED |
| Power supply: | Auto Switching 100-240VAC, 50-60Hz |
| Environment: | 41°F to 104°F (5°C to 40°C) Storage Temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity: | Operating: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Certified: | CE(EMC), FCC Class A, CB, cUL, CCC |
| Dimensions: | Length: 11.2 (285 mm) Height: 6.8 (171 mm) Width: 8.9 (226 mm) |
| Weight: | 6 lbs (2.72Kg), without accessories |
| Available modifications: | Sticker cutter Peeler External Sticker Roll Holder 10 (250 mm) External Sticker Wrapper |
