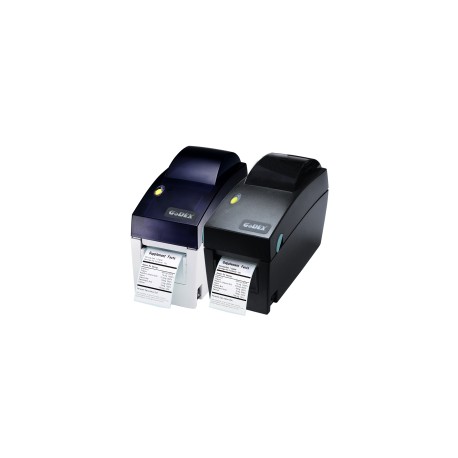

The Godex DT2 label printer is a very compact, fast and reliable barcode printer. It is a particularly good choice for those who want a space-saving label printer. It is ideal for retail label and label printing, wrist bands and other small temporary marking applications.
Sticker printers are indispensable helpers in any business. This printer guarantees efficient printing of labels and labels.
You might also like
| Printing method: | Direct Thermal |
| Resolution: | 203 dpi (8 dots/mm) |
| Print speed: | 7 IPS (177 mm/s) |
| Print width: | 2.12 (54 mm) |
| Print length: | Min. 0.16 (4 mm)**; Max 68 (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 4MB Flash (2MB for user storage) / 16MB SDRAM |
| Media |
Width: 0.6 (15 mm) Min. - 2.36 (60 mm) Max. Thickness: 0.003 (0.06 mm) Min. - 0.008 (0.20 mm) Max. Sticker roll diameter: Max. 5 (127 mm) Core diameter: 1, 1.5 (25.4 mm, 38.1 mm)
|
| Printer supported languages | EZPL, GEPL, GZPL auto switch |
| Software: |
Label design software: QLabel-IV, GoLabel (EZPL only) Driver and DLL: Windows 2000, XP, Vista, 7,8,Windows Server 2003 & 2008
|
| Available fonts: |
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
|
| Downloadable fonts: |
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
|
| Barcodes: |
1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar 2-D Bar Codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
|
| Encoding: |
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16)
|
| Graphics: |
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
|
| Interfaces: | Serial port: RS-232 (DB-9) USB port Ethernet 10/100Mbps |
| Control Panel: | One Tri-color LED: Power (Green, Orange and Red) Function Key: FEED |
| Power: | Auto Switching 100-240VAC, 50-60Hz |
| Environment: |
41°F to 104°F (5°C to 40°C) Storage Temperature: -4°F to 122°F (-20°C to 50°C)
|
| Humidity: | Operating: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Certified: | CE(EMC), FCC Class A, CB, cUL, CCC |
| Dimensions: | 8.58 (218 mm) Height: 6.77 (172 mm) Width: 3.94 (100 mm) |
| Weight: | 2.65 lbs (1.2Kg), without accessories |
| Available modifications: |
Sticker cutter Sticker cutter Sticker peeler External sticker roll holder 10 (250 mm) External sticker wrapper
|
