Printing method: | Direct Thermal |
Resolution: | 203 dpi (8 dots/mm) |
Print speed: | 7 IPS (177 mm/s) |
Print width: | 4.16" (105.7mm) |
Print length: | Min. 0.16 (4 mm)**; Max 68 (1727 mm) |
Processor | 32 Bit RISC CPU |
Memory | 8MB Flash (4MB for user storage) / 16MB SDRAM |
Media |
Width: 1 (25.4 mm) Min. - 4.64 (118 mm) Max. Thickness: 0.003 (0.06 mm) Min. - 0.008 (0.20 mm) Max. Sticker roll diameter: Max. 5 (127 mm) Core diameter: 1, 1.5 (25.4 mm, 38.1 mm)
|
Printer supported languages | EZPL, GEPL, GZPL auto switch |
Software: |
Label design software: QLabel-IV, GoLabel (EZPL only) Driver and DLL: Windows 2000, XP, Vista, 7,8,Windows Server 2003 & 2008
|
Available fonts: |
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
|
Downloadable fonts: |
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
|
Barcodes: |
1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar 2-D Bar Codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
|
Encoding: |
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16)
|
Graphics: |
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
|

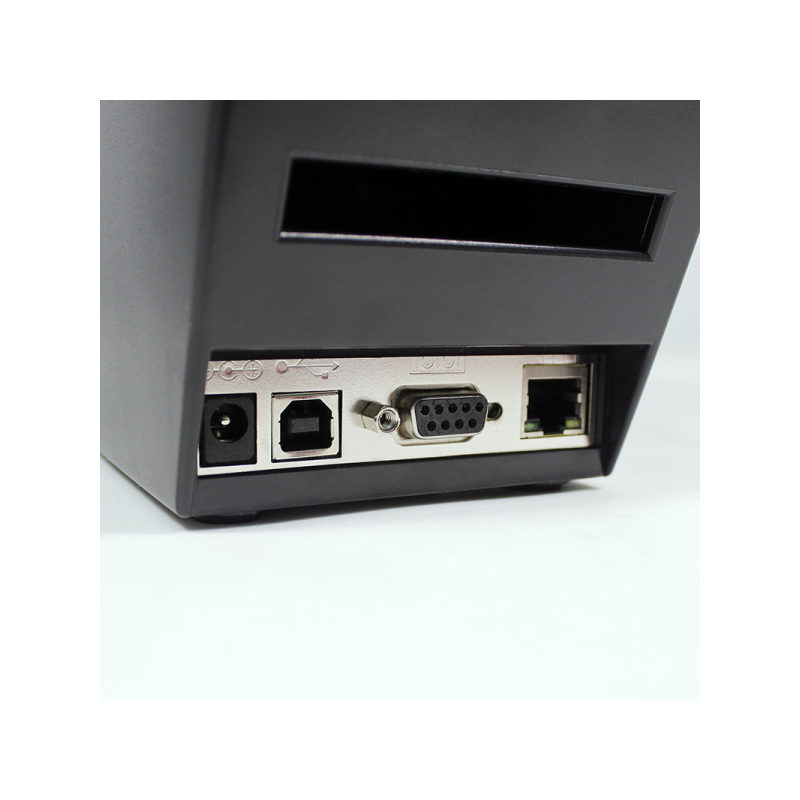

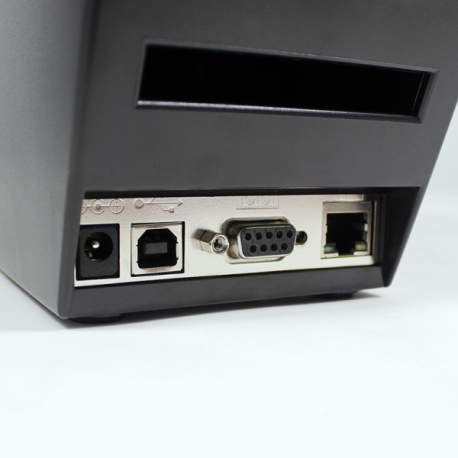

Interfaces: | Serial port: RS-232 (DB-9) USB port Ethernet 10/100Mbps |
Control Panel: | One Tri-color LED: Power (Green, Orange and Red) Function Key: FEED |
Power: | Auto Switching 100-240VAC, 50-60Hz |
Environment: |
41°F to 104°F (5°C to 40°C) Storage Temperature: -4°F to 122°F (-20°C to 50°C)
|
Humidity: | Operating: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
Certified: | CE(EMC), FCC Class A, CB, cUL, CCC |
Dimensions: | Length: 8.58 (218 mm) Height: 6.53 (166 mm) Width: 6.61 (168 mm) |
Weight: | 3.3 lbs (1.5Kg), without accessories |
Available modifications: |
Sticker cutter Sticker peeler External sticker roll holder 10 (250 mm) External sticker wrapper
|
- Recommended

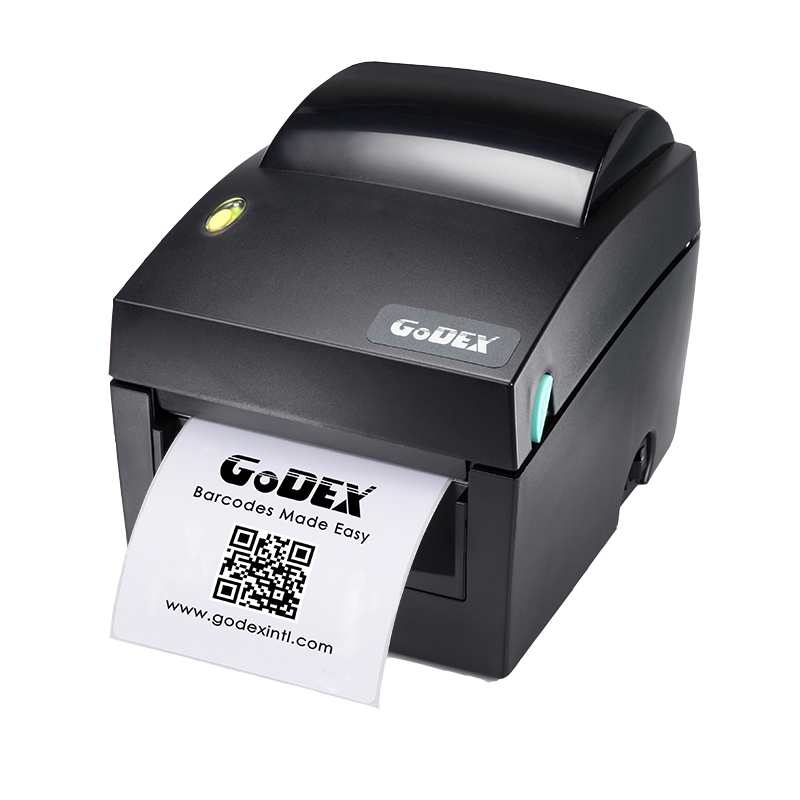

The Godex DT4x is probably the most popular parcel printer. The printer has a print width of up to 108 mm Built-in Ethernet connection Extremely easy to change adhesive labels Godex printers come with the free Golabel professional label maker and printing software Warranty 36 months (6 months or 50 km for the printer head, whichever expires first)
